Products

DESCRIPTION

Basic Info.

Model NO.	Copper Upcasting Series
Condition	New
Raw Material	Cathode Copper/Scrap Copper(Higher 99.5)
Power	320kw as Reference
Voltage	380V as Reference
Output	3000ton-20000ton as Reference
Product Purity	Rod 99.9%
Product Sizes	Determined by Demand
Weight (Kg)	Customized
Feature	Flexible Capacity, Product Size
Applicable Industries	Wire and Flat Strip Busbar Facility
Advantage	High Capacity
Control	Speed Digital Display
Price	Competitive
Material	Copper
Transport Package	Carton Box or Wooden Box
Specification	Customized
Trademark	Holland
Origin	Beijing
Production Capacity	10000-360000ton/Year as Reference

Product Description

Summery
The up casting line is one of our strength products, it is the best way of making oxygen free copper rods. With its advantages of flexible capacity and product size, compact process, economic power installation and consumption. The rods of our up casting line are widely used as raw material for continuous extrusion and enameling.

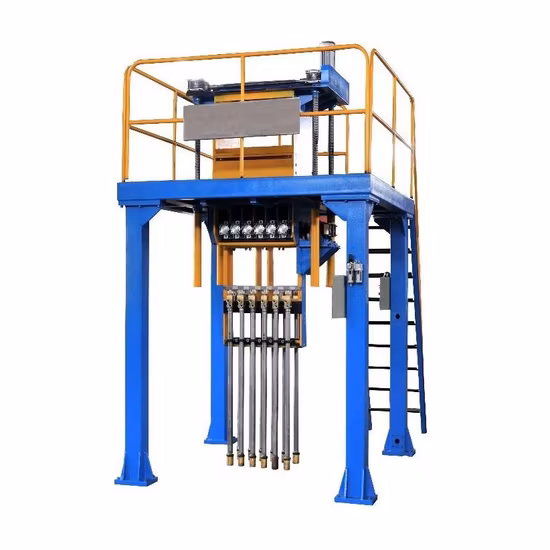

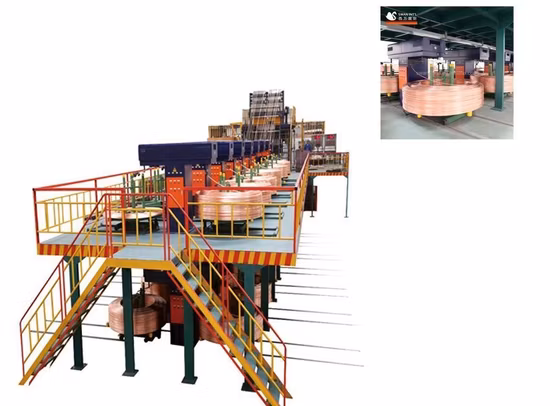

Upward continuous casting oxygen-free copper rod production line (called the plant as follow), it is used for producing the big length shining/bright oxygen-free copper rod, the big length shining oxygen-free copper tube and the big length shining oxygen-free copper flat strip, etc.

Craftwork flow
Cathode copper/Scrap copper → melting furnace → transition chamber → holding furnace → casting machine (crystal molding) → casting rod → take-up device → on sale or further producing
Put the cathode copper into the melting furnace of QL1 compounded furnace straightly. It will be melted into liquid by a frequency inductor. Then the liquid of copper smoothly pass through the transition chamber and will flood into the holding furnace automatically , and then it will be deoxidized by the charcoal covered. The liquid of copper will become a casting rod quickly by the crystallizer of the casting machine in the holding furnace. Then it will be hauled by the double-withdrawal roller of the casting machine. When the casting rod is hauled off, it will be led to take-up device.

Copper Scrap Solution Comparison
Process	Purity	Scrap Quantity	Product/Purity	Main Equipment
CCR	>95.2%	10KT-50KT/annually	Rod/99.9%	Furnace, Casting/rolling, fume treatment
Adding to upcast after refinery	>96%	1-3KT/annually	Rod/99.9%	Refining furnace, Up casting line
Adding to upcast without refinery	>99.5%	5-20KT/annually	Rod/99.95%	Up casting line
Direct Electrolysis	>96%	<2 KT/a nnually	Cathode/99.95%	Electrolysis system, water purification
Anode Electrolysis	90-92%	5KT-150KT/annually	Cathode/99.97%	Refinery furnace, fume treatment,anode caster, electrolysis system, water purification
