DESCRIPTION

Basic Info.

Model NO.	FXMH
Raw Material	Brass,Copper,Bronze Scrap
Power Consumption	<350kwh/Ton
Operating Temperature	1250°c
Product Name	Brass Rod Horizontal Continuous Casting Machine
Drive Method	AC Serve Motor
Usage	for Producing Copper,Brass,Bronze Rods,Tubes.etc
Casting Diameter	8-300mm
Application	Brass, Bronze, Copper
Warranty	One Year
After-Sales Service	Engineers Available to Service Machinery Overseas
Transport Package	Plywood Cases
Specification	Customized
Trademark	Fortune Electric
Origin	Shanghai, China (Mainland)
Production Capacity	500sets/Month

Product Description

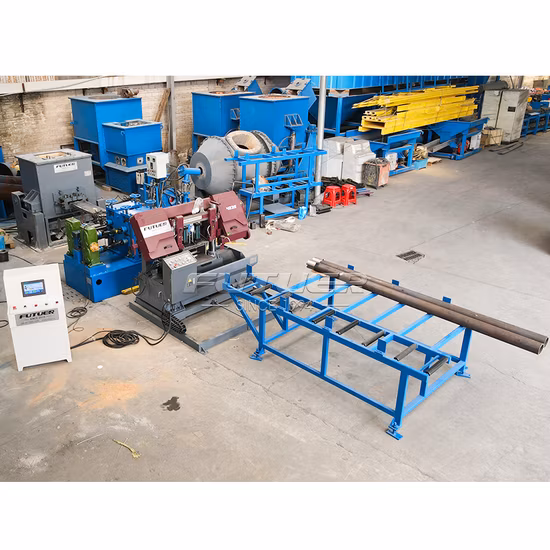

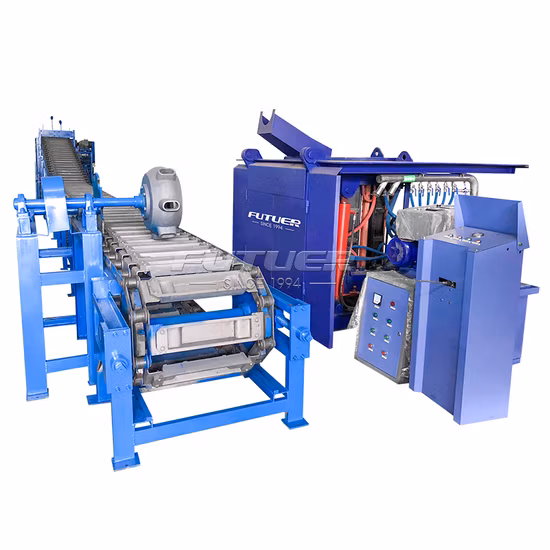

Brass rod horizontal continuous casting machine

Brief Introduction
The unit is cmposed of subsurface line-frequency cored combination furnace, micro-stroke back stepping drawing machine, synchronous shearing machin/cutting macine, take-up macine/collection table and so on. The working process is automatically controlled by PLC system. The techinical parameters are are easy to adjust, so that the quality of castings is significantly improved. Tje imot os characterized by advanced technology, novel structure and obious energy saving suitabe. Suitable for producintg copper pipe,copper strips,barss strip, phosphor bronze strips, zinc-copper -nickel alloy strips etc. The products can be strips, pipe billets, round billets, square billets, square billets, hexagonal rods and other irregular billet.

Machine Composition
1. Furnace (melting furnace and holding furnace)2. Tractors3. Automatic cutting machine4. peeling machine(barking machine)5. Electric control system6.Water cooling system7. Dust removal equipment.

Technical Parameter

Model	200kg	300kg	500kg	750kg
Min. capacity (T)	0.15	0.2	0.3	0.5
Rated capacity of melting furnace (T)	0.8	1.2	1.8	2
Rated capacity of holding furnace (T)	1.5	2.8	3	4
Rated voltage of inductor (V)	380	380	380	380
Phase number (phase)	3	3	3	3
Frequency (HZ)	50	50	50	50
Melting rate (t/h)	0.2	0.3	0.5	0.75
Power consumption (KW h/t)	300	280	260	260
Holding power (KW)	30	45	55	70
Rated power (KW)	60	90	120	180
Rated working temperature (ºC)	1250	1250	1250	1250
Power factor	Before compensation:0.45-0.5 after compensation:0.95-1
Cooling water pressure (Mpa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Cooling water volume (t/h)	1.6 coil water jacket	1.6 coil water jacket	1.6 coil water jacket	2.8 coil water jacket
Iron core weight (kg)	221	420	550	815
Molten hook weight (kg)	45	60	80	105

Model	1000kg	1500kg	2000kg	3000kg
Min. capacity (T)	0.55	0.6	0.7	0.85
Rated capacity of melting furnace (T)	2.2	3.5	5	7.5
Rated capacity of holding furnace (T)
Rated voltage of inductor (V)	380	380	380	380
Phase number (phase)	3	3	3	3
Frequency (HZ)	50	50	50	50
Melting rate (t/h)	1	1.5	2	3
Power consumption (KW h/t)	260	240	240	230
Holding power (KW)	70	95	120	160
Rated power (KW)	240	360	480	720
Rated working temperature (ºC)	1250	1250	1250	1250
Power factor	Before compensation:0.45-0.5 after compensation:0.95-1
Cooling water pressure (Mpa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Cooling water volume (t/h)	2.8 coil water jacket	2.8 coil water jacket	3.8 coil water jacket	3.8 coil water jacket
Iron core weight (kg)	815
Molten hook weight (kg)	220	210	230	330

Processing flow

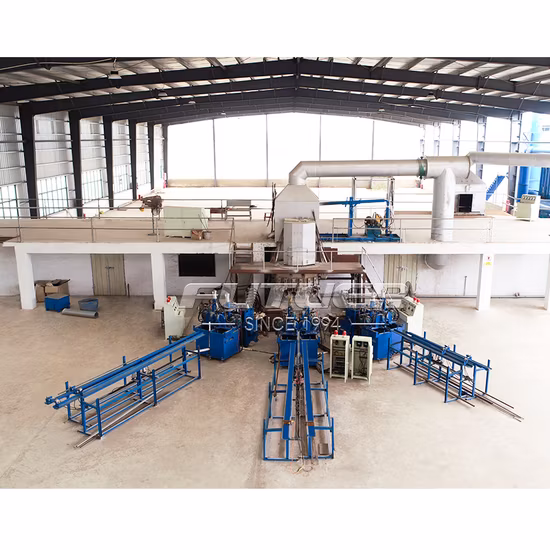

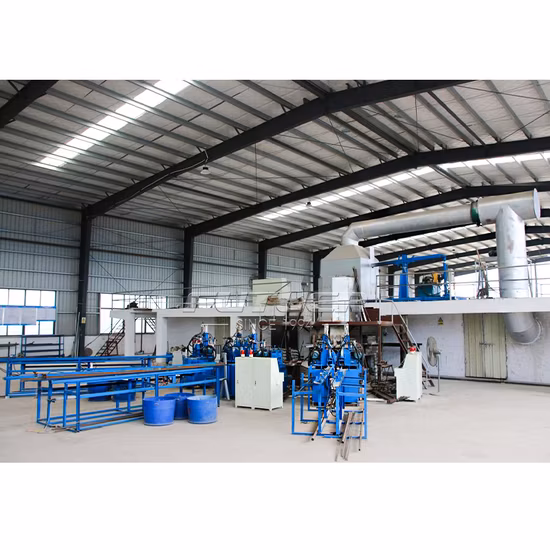

Product show

Company information
As a professional manufacturer and exporter of metallurgical machinery and equipment, Shanghai Fortune Electric Co., Ltd. specializes in the design, research and development, manufacture, sales and service of metallurgical casting equipment. Owning the advanced technology and experienced engineer team, we provide professional solutions to the field of metallurgical machinery and equipment.

After more than twenty-year operation, we have formed complete metallurgical equipment supply chains. All of our products conform to the international quality standards and win extremely great reputation in a variety of markets throughout the world. Nowadays, we have cooperated with many well-known domestic and foreign companies as a gold supplier.

Our main products include line-frequency induction melting furnace, horizontal continuous casting machine, upwards continuous casting machine, semi-continuous casting machine, heat treatment furnace, supporting extrusion machine, wire drawing machine, rolling mill, dust removal equipment and cooling tower, and other related metallurgy and casting equipment.

We sincerely welcome the old and new clients to communicate and negotiate with us. We are willing to work with you hand in hand to develop forward together and create brilliant future.

Our service

1. Inquiry response within 24 hour.

2. Ensure every quatation is practical &customized according to your requirement.

3. Provide the design suggestions and layout plan for the clients workshop.

4. Provide the technical specification of the auxiliary facilities.

5. Provide professional installation drawing before order.

6. Engeneers are available to serve the machines overseas.

7. Our factory always welcome to your visit. We can take you to visit our local customers.

8. Quality assurance: 12 months except consumable parts.
